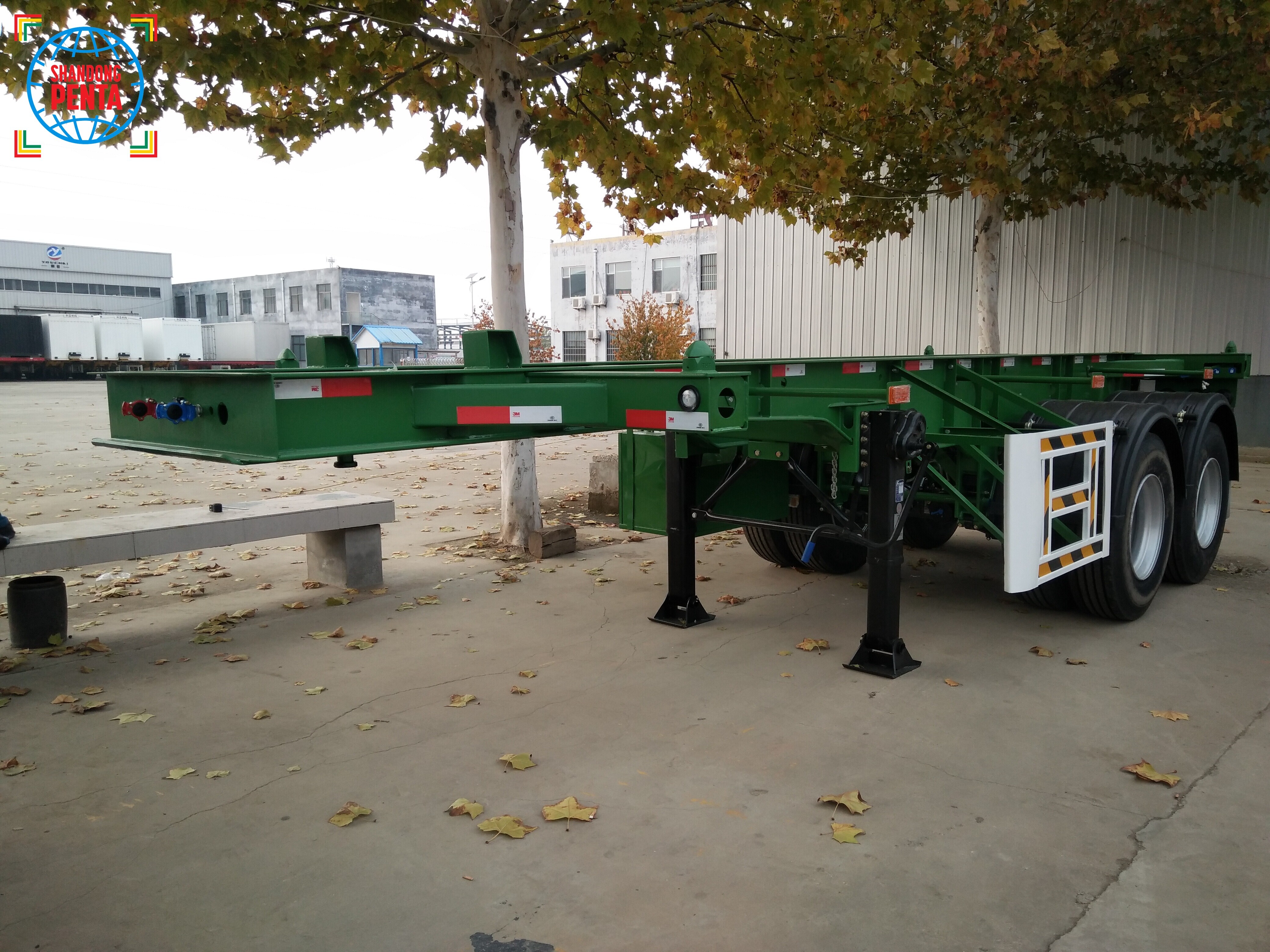

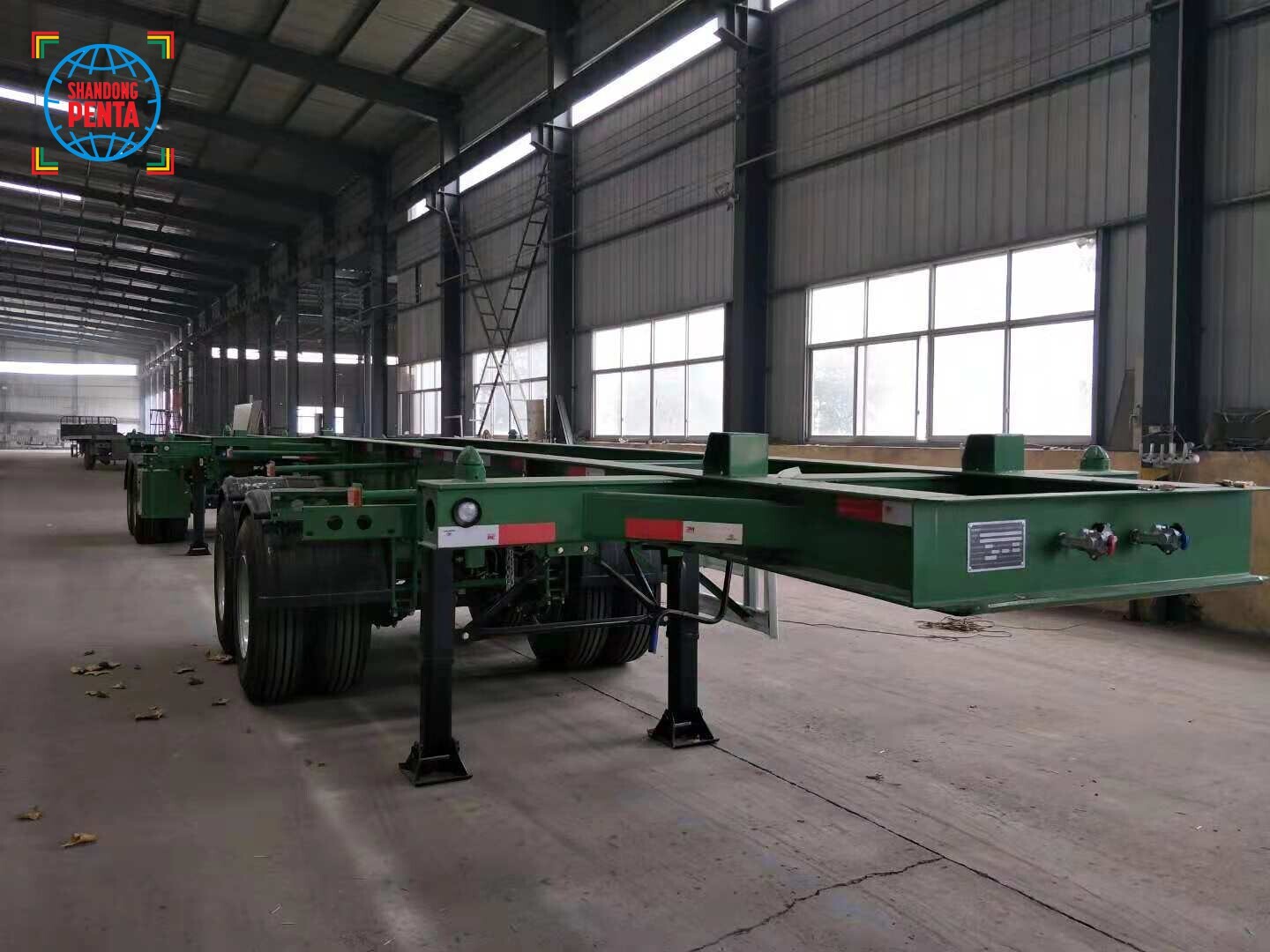

2-axle 20ft Skeleton Semi-Trailer

Item name	20' skeletal semi trailer - 2 Axle
Tare weight	4T
Payload	30T
Overall size(LWH)mm	720024801570
Wheelbase (mm)	4450+1310
Chassis
Main beam	Material: Q345B fabricated carbon steel; Type: straight type; Height: 400mm; Upper plate: 14mm； Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr
Twist lock	4 units
King pin	50#
Running system
Axle	Brand: factory standard Capacity: 13T QTY: 2 units
Tyre	Brand: chengshan/Linglong; Type: 12R22.5-16PR; double mounted QTY: 8 units
Rim	22.5*9.0-14, 8 units
Landing gear	28T total Lifting capacity and 50T static capacity; double speed; large pad feet;
Suspension	Mechanical system with beams equaliser
Leaf spring	Size: 90mm*13mm; Qty: 10+10
Brake system	Brand: Xinya Type: Dual line braking system Brake air chamber: 4 in total, T30/302 + T302 Air tank: 40L*1 unit ABS: none
Accessories
Electric system	24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc.
Tool box	1 unit; include: 1 tyre spanner, 1 gudgeon sleeve & 1 cranking bar & instruction sheet
Spare wheel bracket	1 unit
Print	sand blaster; Color optional; 1 coat of anticorrosive prime, 2 coats of final paints
Protectors	Mudguard; Mud-flags behind rear axle; Mid & Rear Side protection; Rear platform
