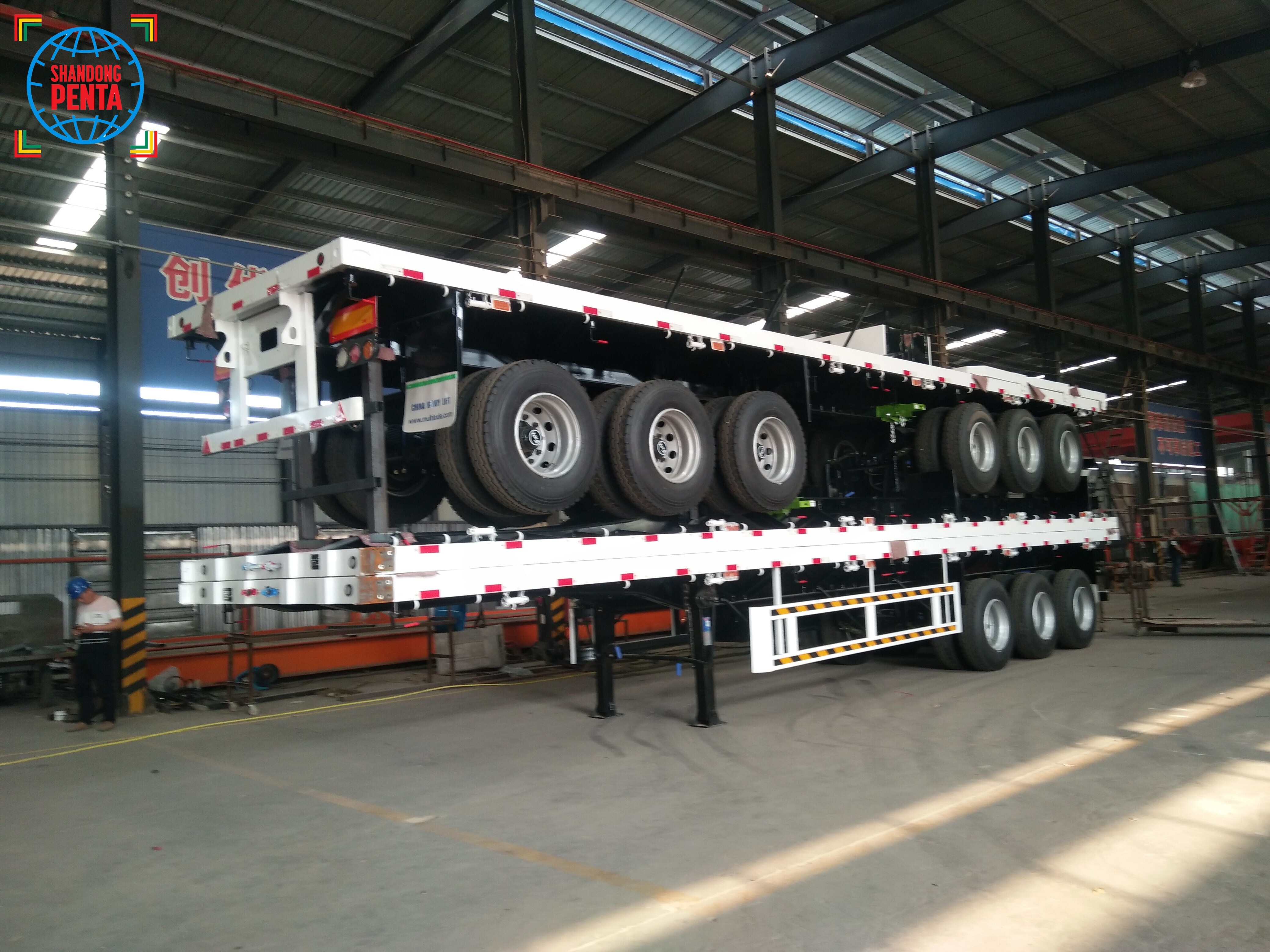

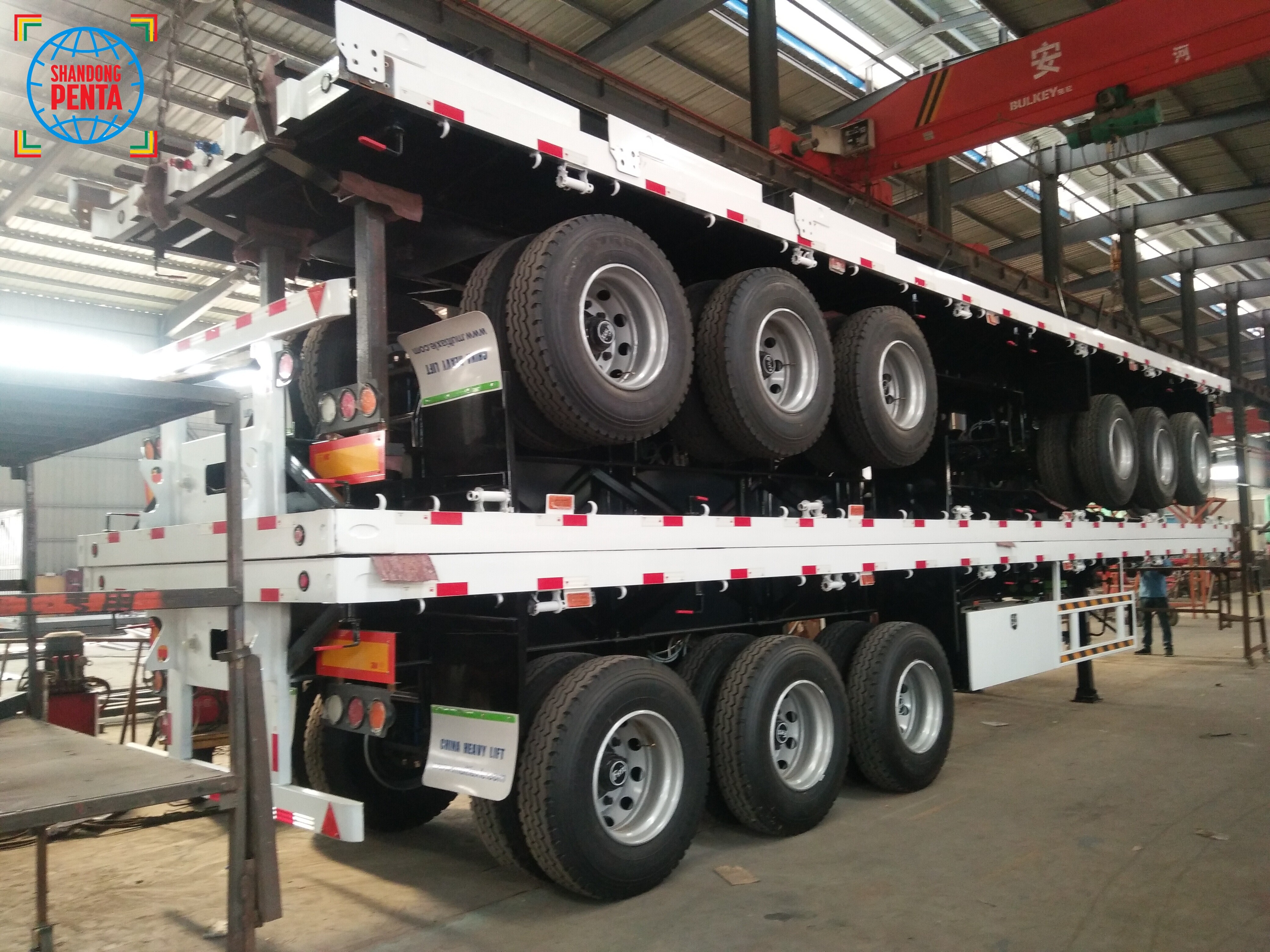

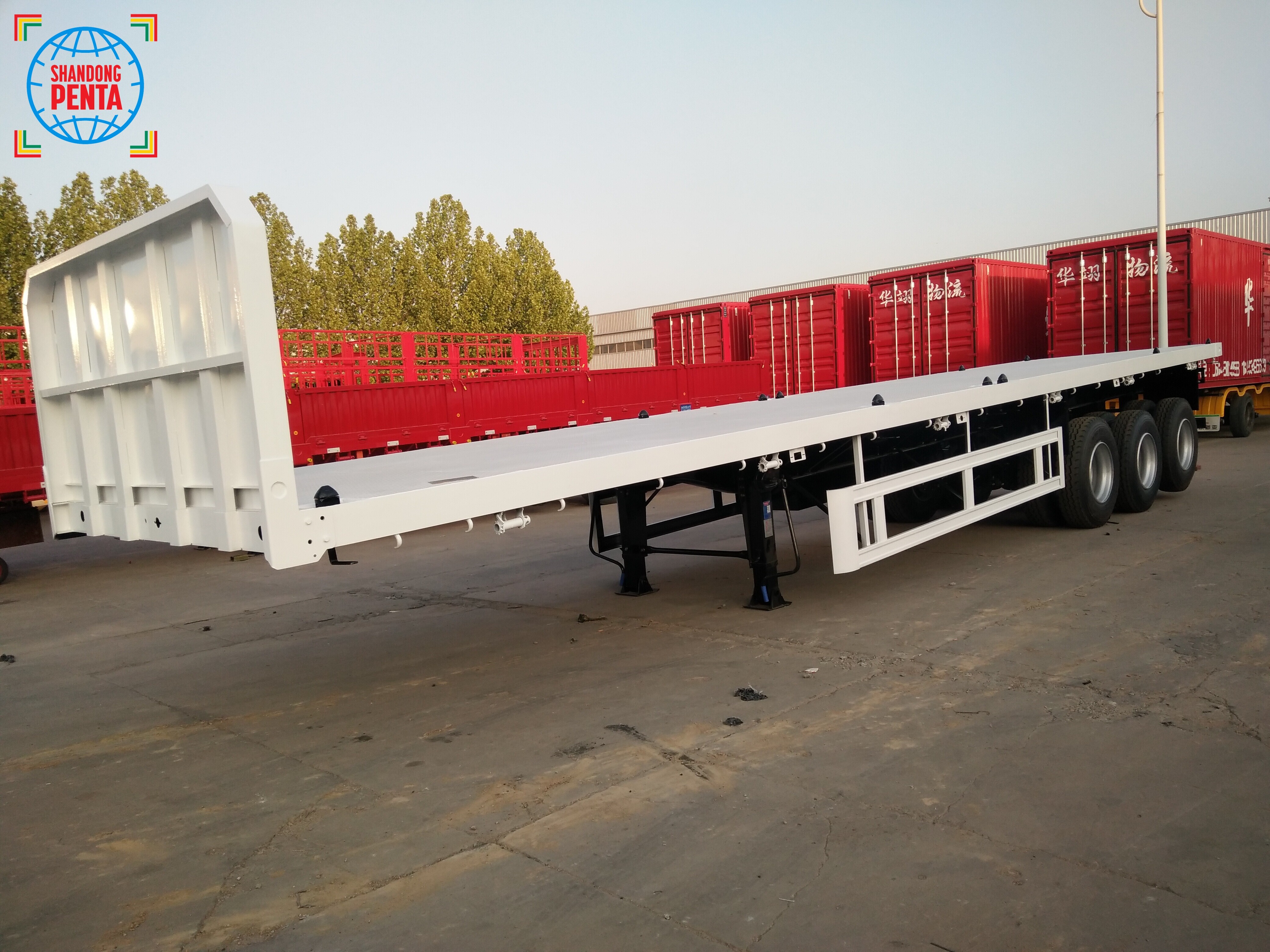

3-axle 40ft Flatbed Semi-Trailer

item name	40' flatbed semi trailer - 3 Axle
Weight
Tare weight	6.5T
Payload	50T
Specification
Overall size(LWH)mm	1240025001510
Wheelbase (mm)	5780+1310+1310
Chassis
Main beam	Material: Q345B fabricated carbon steel; Type: straight type; Height: 480mm; Upper plate: 14mm； Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr
Side beam	14#C type; Q235
Cross beam	8# C type; Q235
plateform	2mm checker plate
Twist lock	12
King pin	50#
Front door	none
Running system
Axle	Brand: Xinya; Capacity: 13T16P QTY: 3 units
Tyre	Brand: chengshan/Triangle; Type: 12R22.5-18PR; double mounted; QTY: 12 units
Rim	22.5*9.0-14, 12 units
Landing gear	Brand:Xinya; 28T total Lifting capacity and 50T static capacity; double speed; large pad feet;
Suspension	Mechanical system with beams equaliser
Leaf spring	Size: 90mm*13mm; Qty: 10+10+10
Brake system	Brand: Xinya Type: Dual line braking system Brake air chamber: 6 in total, T30/304 + T302 Air tank: 40L*2 unit ABS: none
Accessories
Electric system	24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc.
Tool box	1 unit; include: 1 tyre spanner, 1 gudgeon sleeve & 1 cranking bar & instruction sheet
Spare wheel bracket	1 unit
Print	sand blaster; Color optional; 1 coat of anticorrosive prime, 2 coats of final paints
Protectors	Mudguard; Mud-flags behind rear axle; Mid & Rear Side protection;
