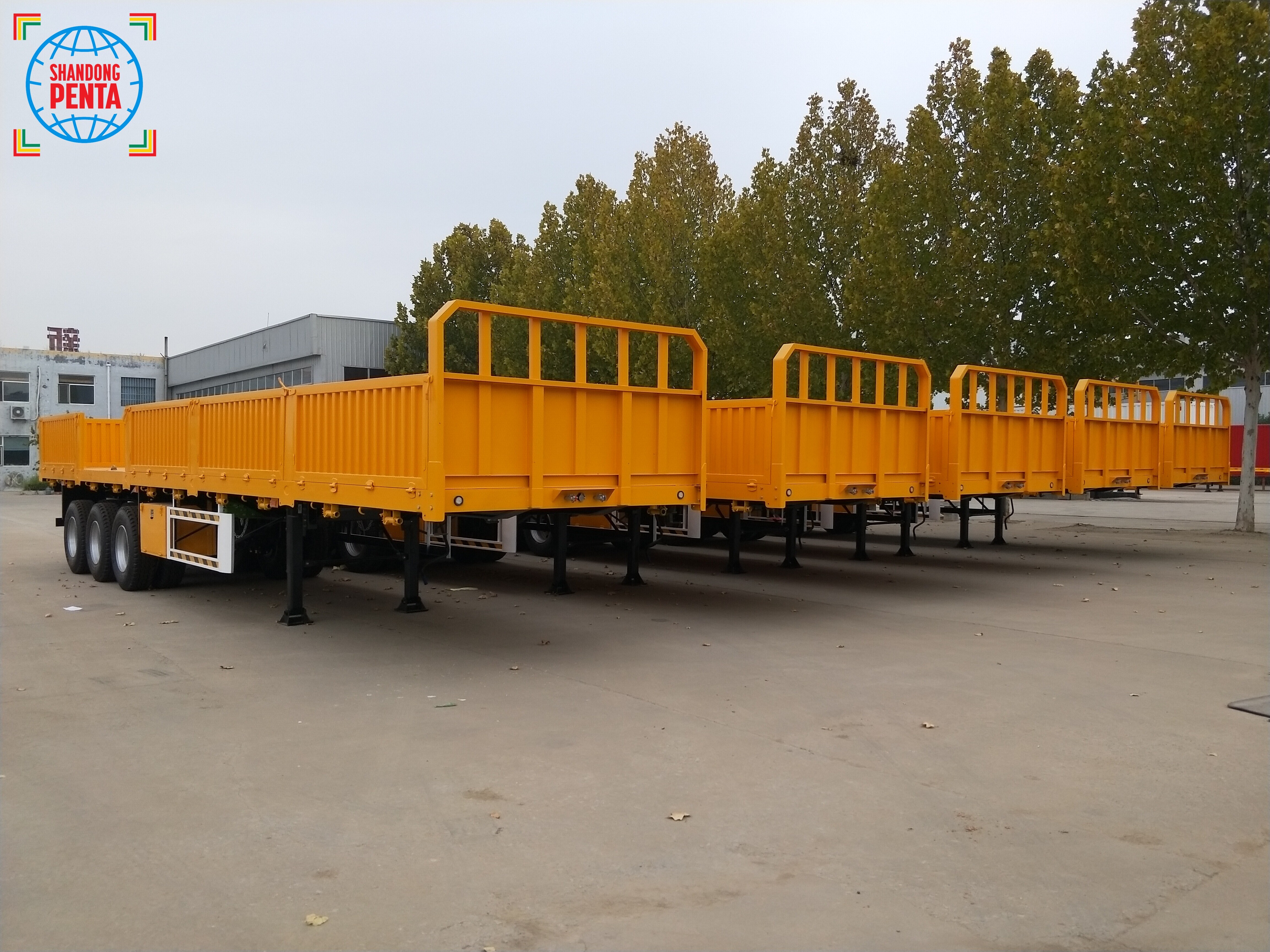

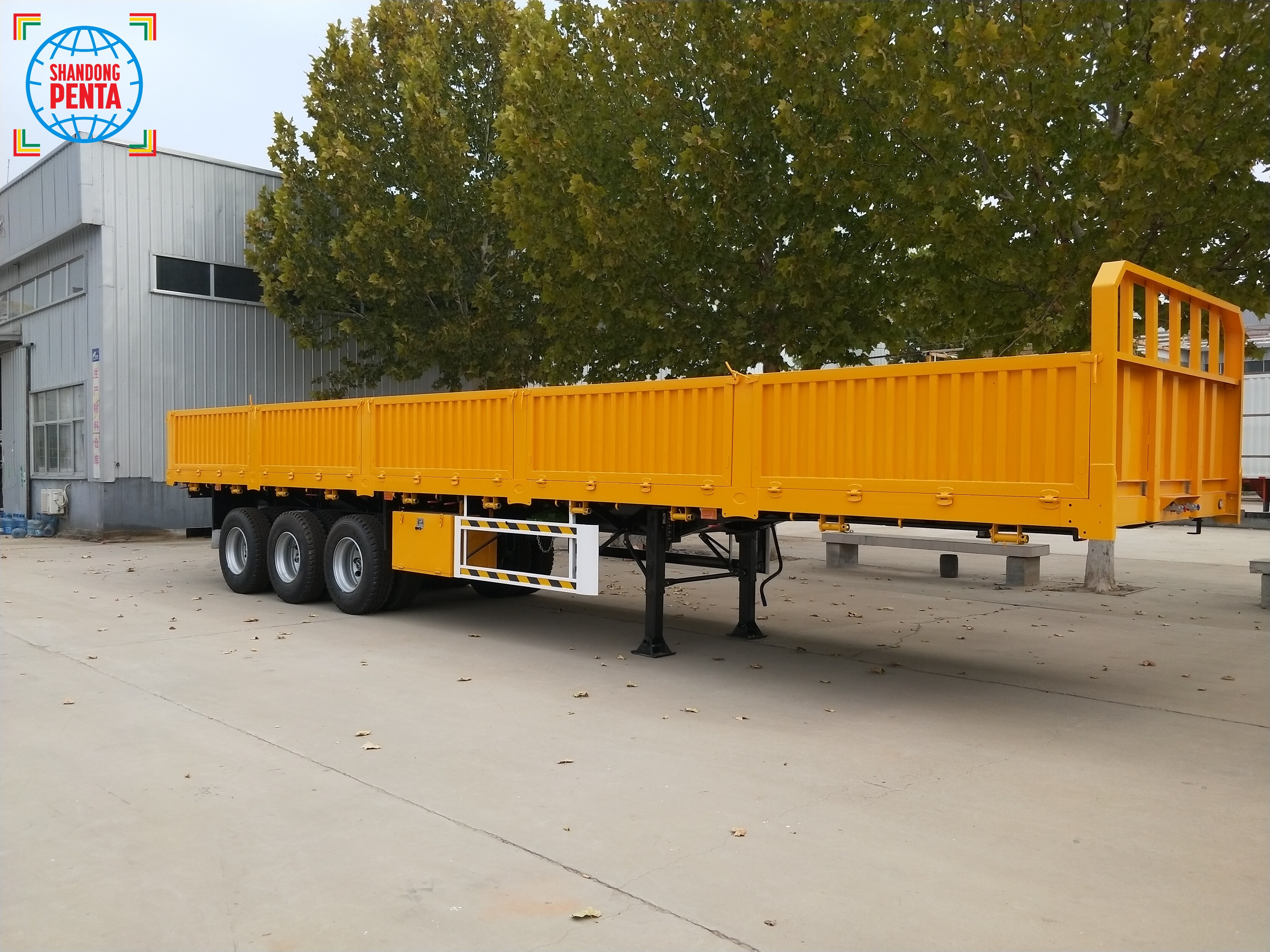

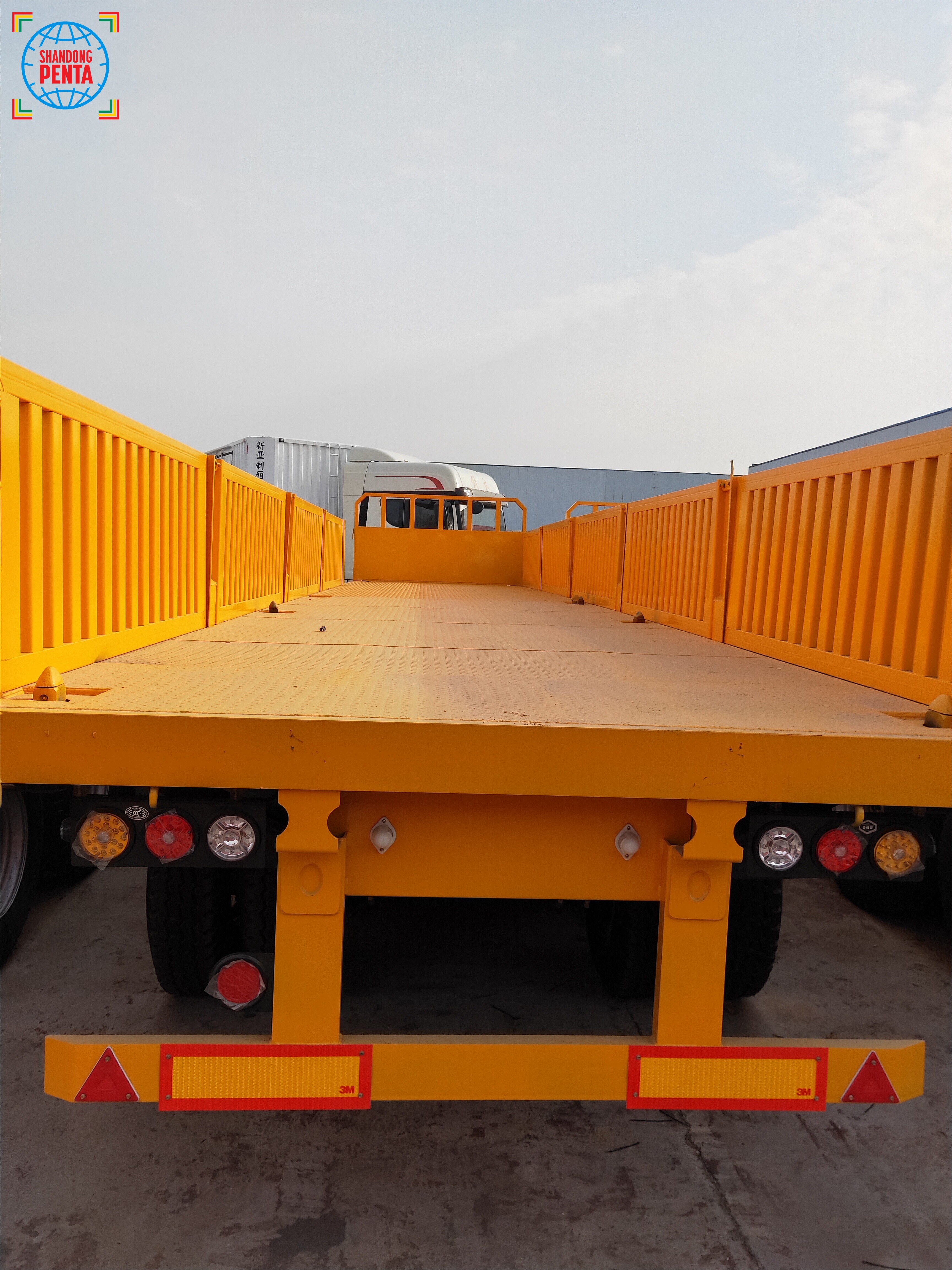

3-axle Flatbed Semi-Trailer
WhatsApp: +86 13161688999
E-mai: richard.zheng@sdpenta.com
WhatsApp: +18365762100
E-mai: ricky.yin@sdpenta.com
Message
◉ Product Description
◉ Factory Showcase
◉ Customer Visits
◉ Delivery
◉ Related Products

Product Description


item name3axle 40ft sidewall semi trailer,11doors
weight
Dead weight approx.7.5T
Payload approx.50T
Specification
Overall size(L*W*H)mm11800*2540*3485
Wheelbase (mm)5380+1310+1310
Side wall (L*W*H)(mm)11800*2540*1800
Plateform height(mm)1485
Chassis
Main beamMaterial: Q345B fabricated carbon steel;
Type: straight type;
Height: 480mm;
Upper plate: 14mm；
Bottom plate: 16mm
Middle plate: 8mm
Process: welded by automatic submerged-acr
Side beam14#C type; Q235
Cross beam8# C type; Q235
plateform3 mm checker plate
Twist lock12 units
King pin50#
tarpaulin framegalvanized steel pipes, optional
tarpaulinPVC with fastening rope and hooks, optional
Rear doorportal frame with double wing (container type),270。Opening
unloading opening400*400mm opening at the bottom of each door for discharging bulk wheat or similar products
Running system
AxleBrand: Xinya;
Capacity: 13T16PQTY:  3 units
TyreBrand: Chengshan/Triangle;
Type: 12R22.5-16PR; double mounted;
QTY:  12 units
Rim22.5*9.0-14, 12 units
Landing gear28T total Lifting capacity and 50T static capacity; double speed; large pad feet;
SuspensionMechanical system with beams equaliser
Leaf springSize: 90mm*13mm;
Qty: 10+10+10
Brake systemBrand: Xinya
Type: Dual line braking system
Brake air chamber: 6 in total, T30/30*4 + T30*2
Air tank: 40L*2 unit
ABS: none
Accessories
Electric system24V LED light;
waterproof wire;
7 ways (7 wire harness);
Tail lamp with turn signal & brake light  & side lamp & reflector etc.
Tool box1 unit;
include: 1 tyre spanner, 1 gudgeon sleeve & 1 cranking bar & instruction sheet
Spare wheel bracket1 unit
ProtectorsMudguard;
Mud-flags behind rear axle;
Mid & Rear Side protection;
Printsand blaster;
Color optional;
1 coat of anticorrosive prime, 2 coats of final paints

Factory Showcase

  • 6131-bb2fd8c18bd7dd74a36646f731a2f01c
  • 15F48CC037DCACBE7F068328A43514078458587C_size287_w1268_h845
  • 2019111701443927
  • 2019111701443839
  • 2019111701443823
  • 1482630.jpg_1200x800
  • WechatIMG86

Customer Visits

  • fe08c1c82aeb2bdf344a0396cffc4571
  • 1ae93b1aa1f541ee649eee5b2f804922
  • 99de6f39765b8d7037bb813fbcba5c00
  • a4aa53e52520a514bcdfff79e9253db7
  • bab401470903e4b27f37882f3810ff2d
  • cf789c47343d6ddbeec0e64e82bc46a2

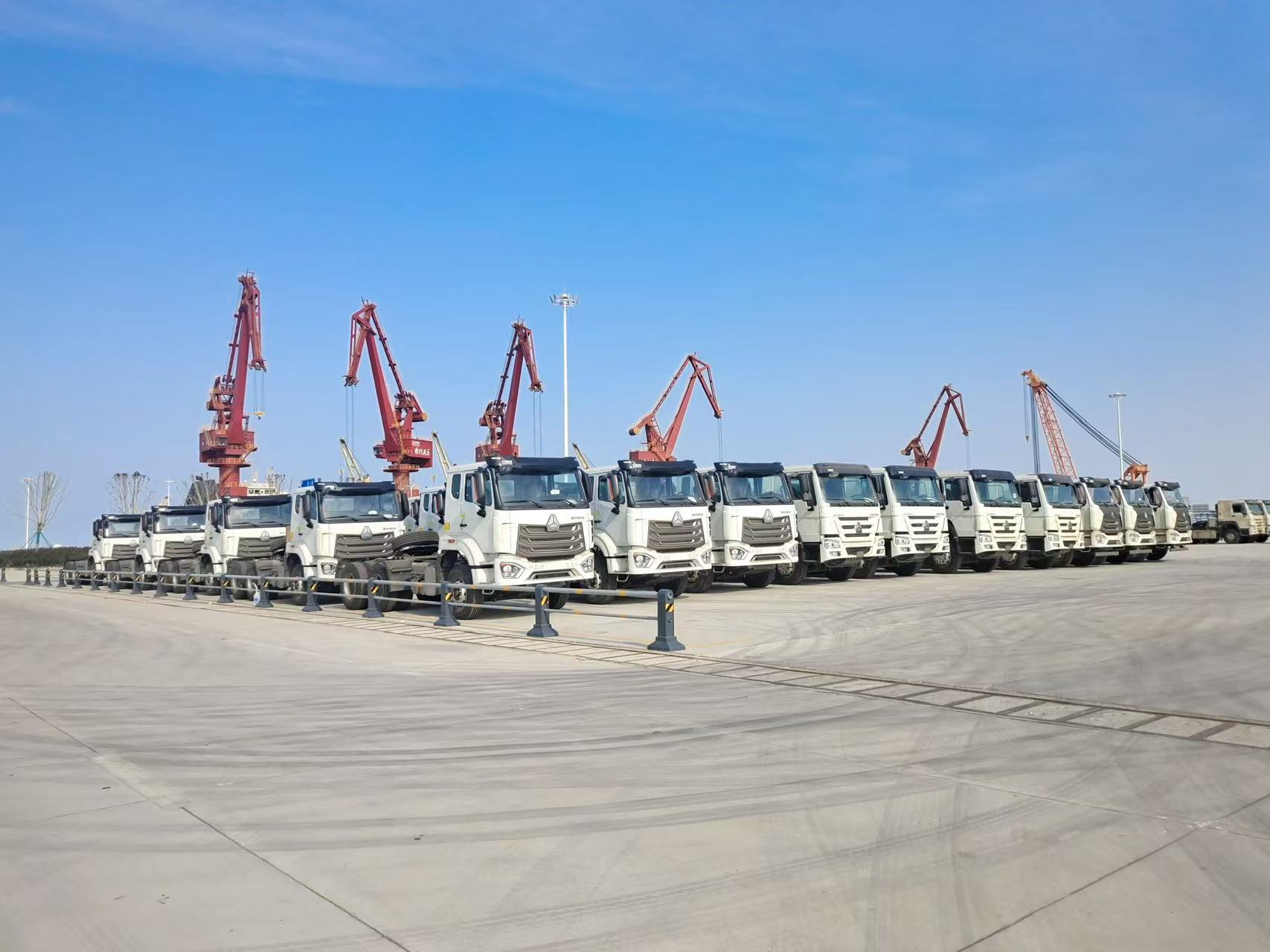

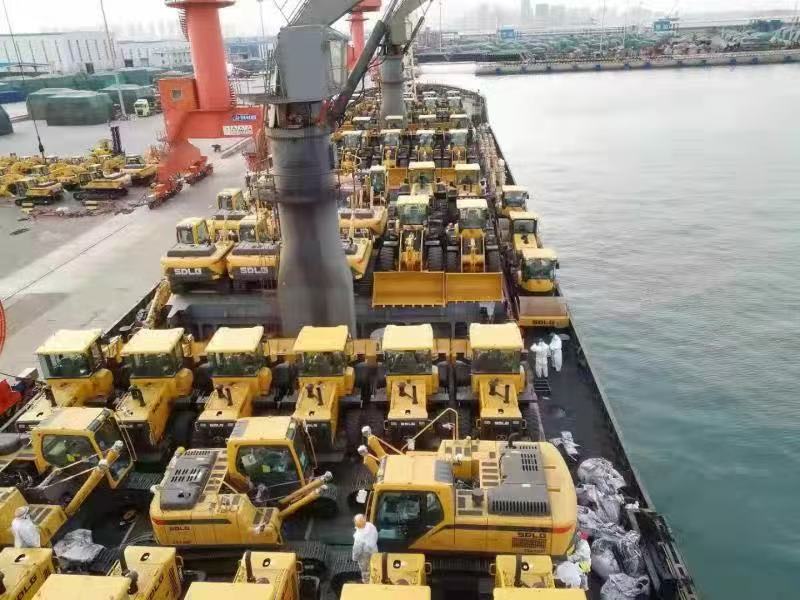

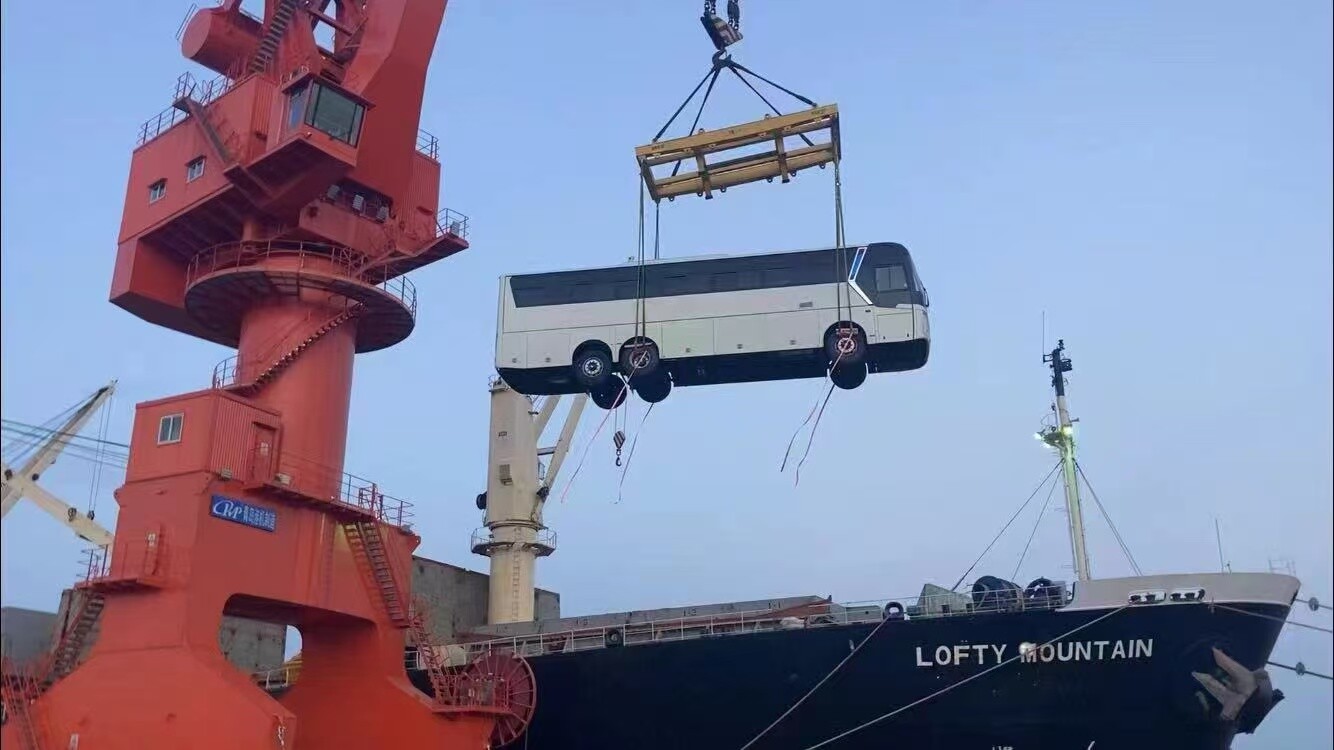

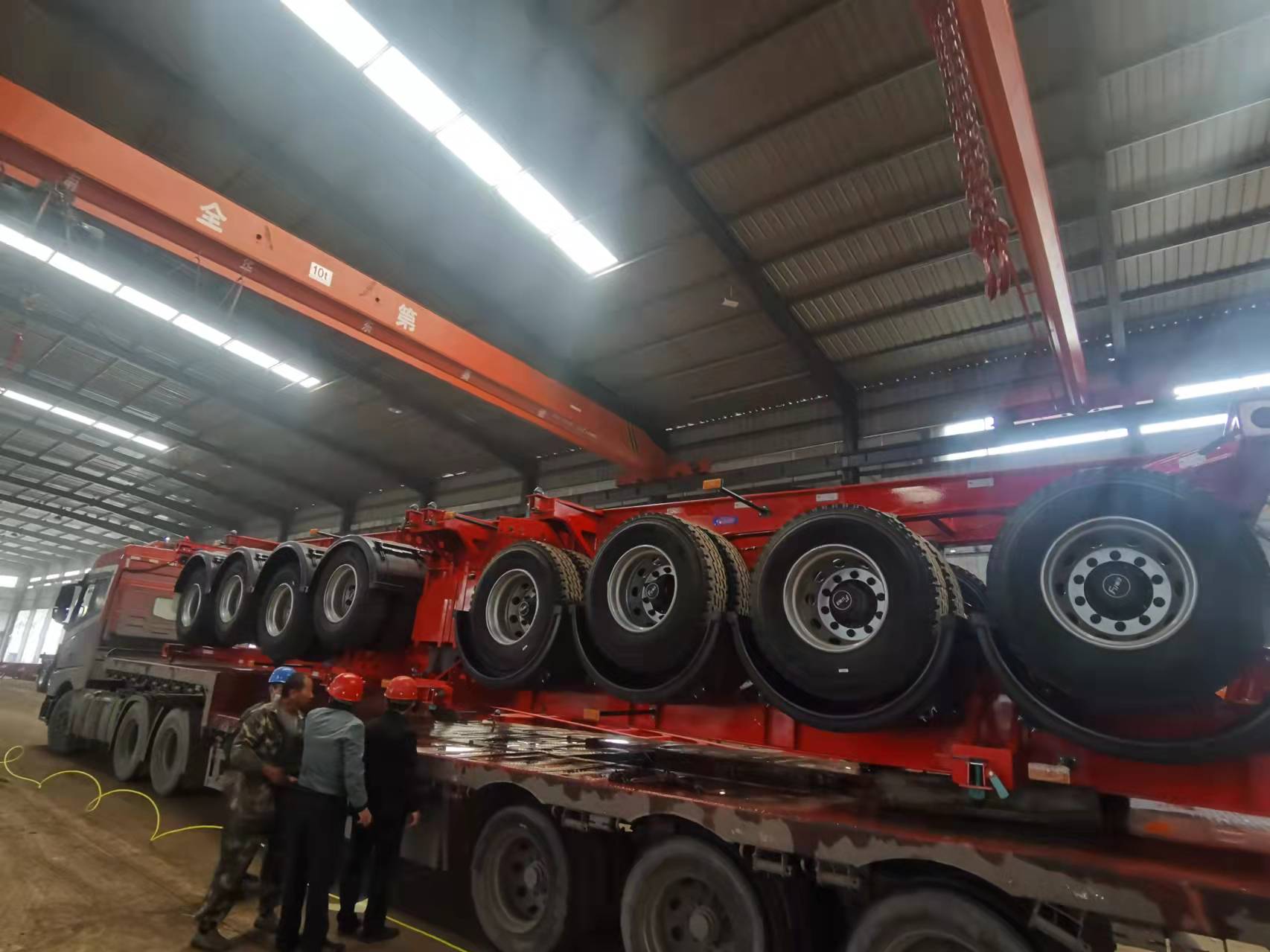

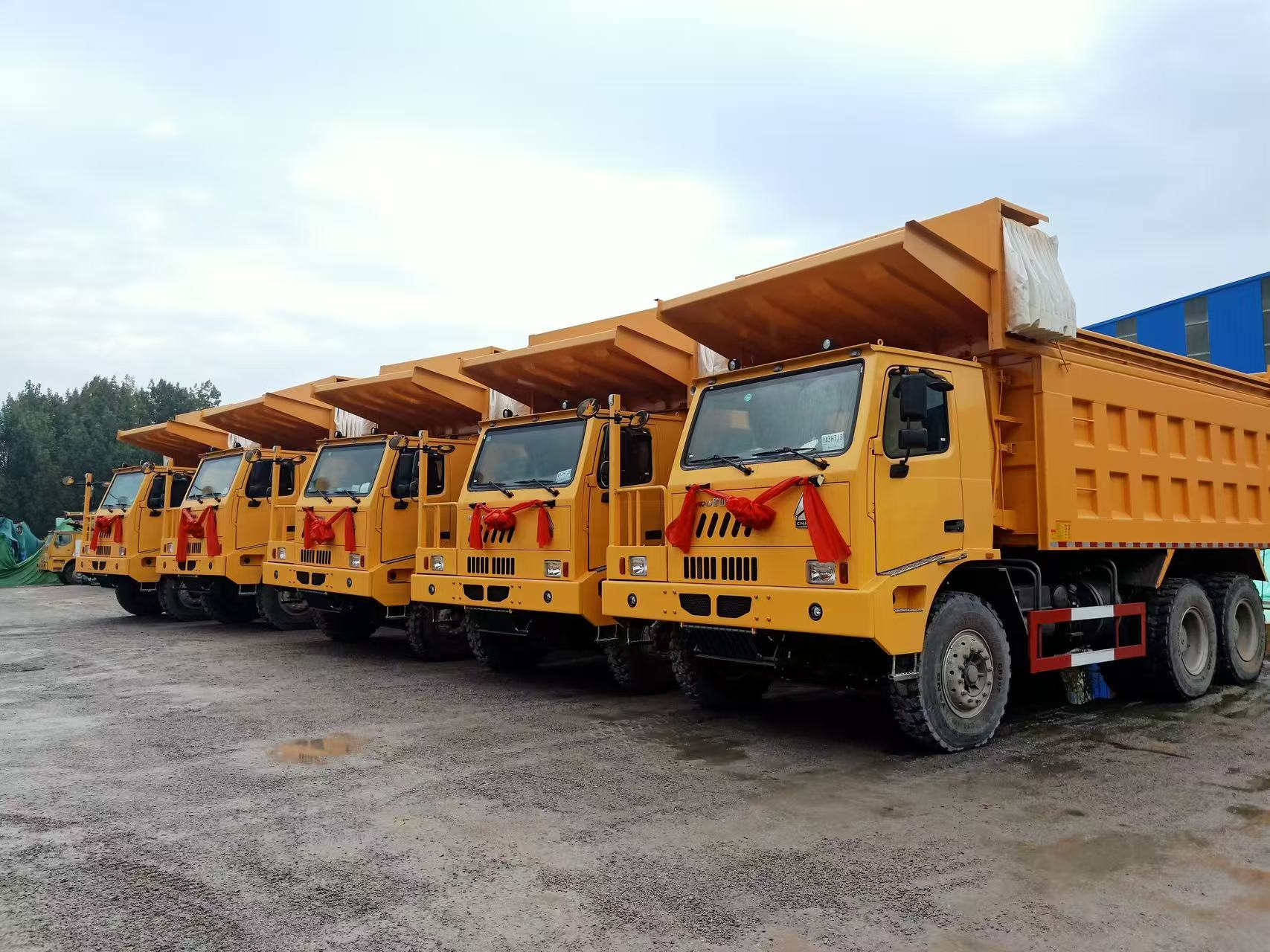

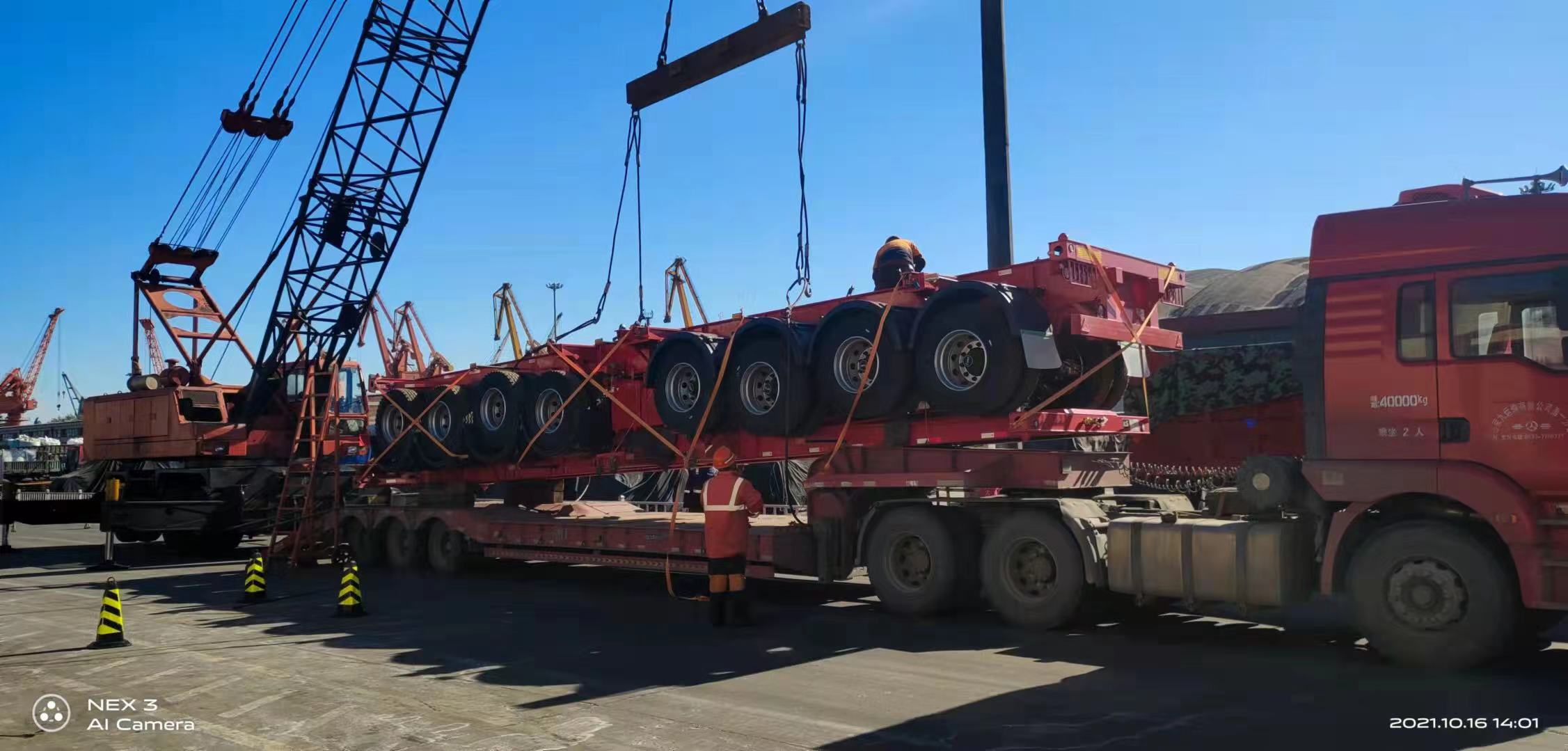

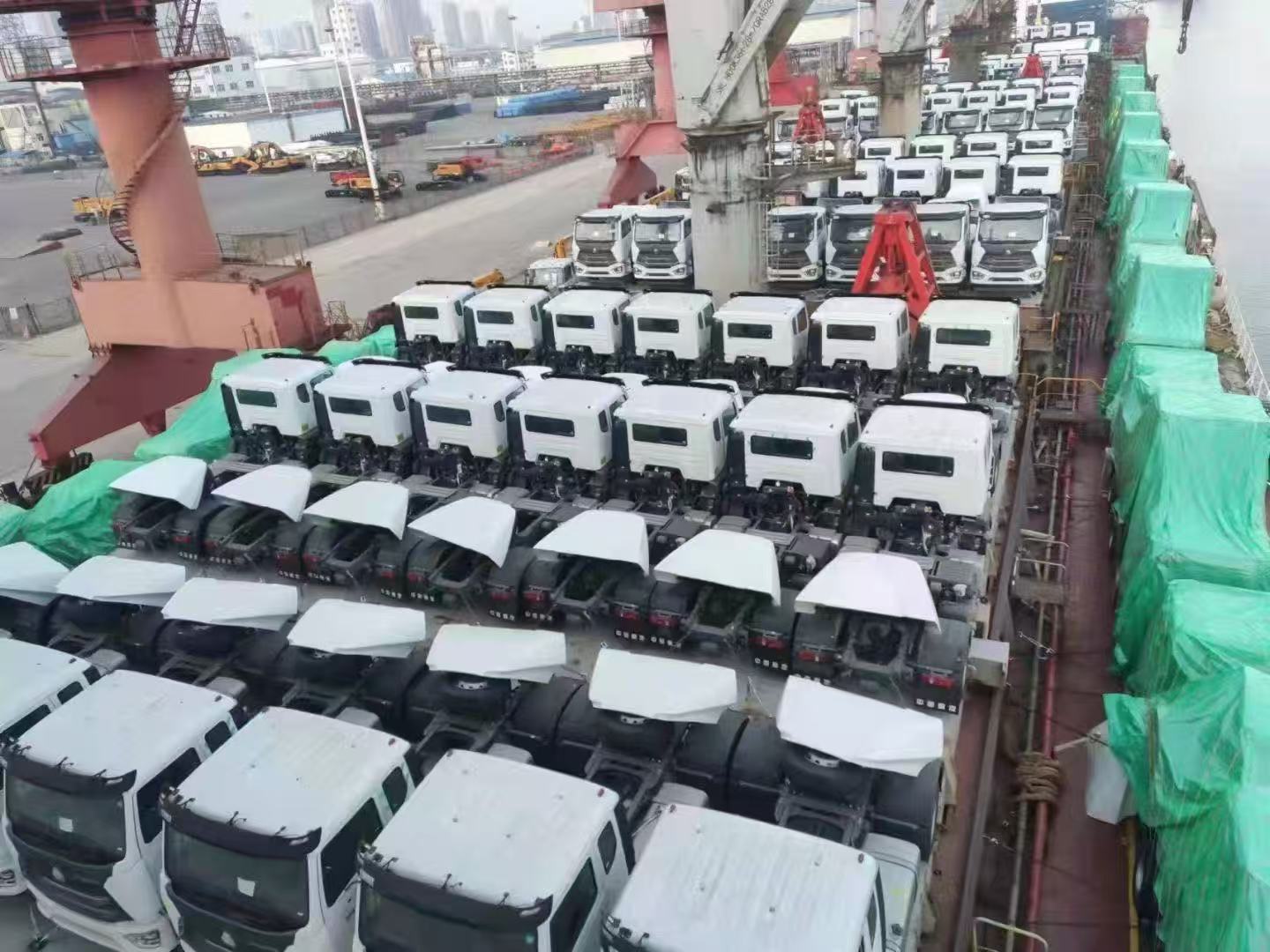

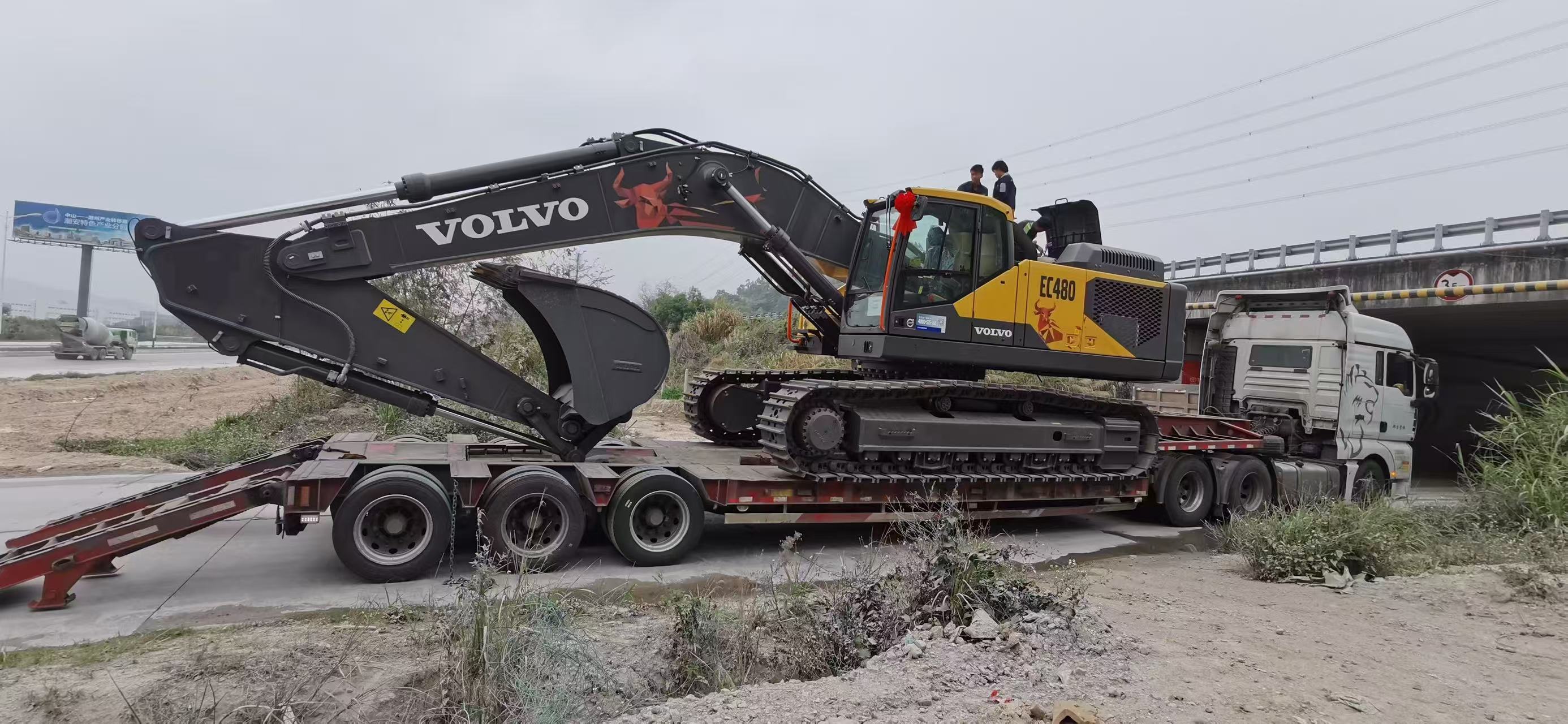

Delivery and Transportation
