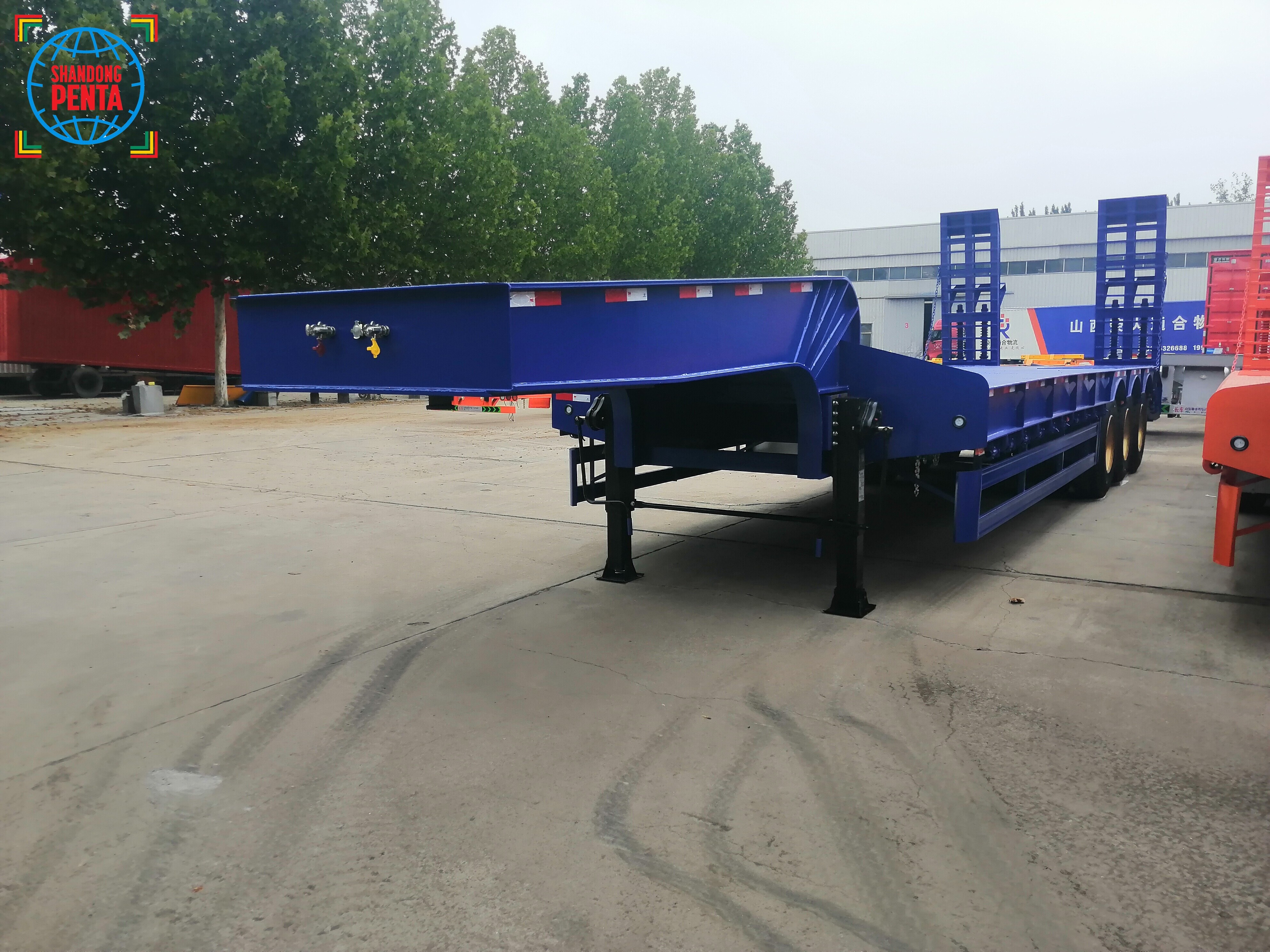

Blue- 3-Axle 16m Low Flatbed Semi-Trailer
WhatsApp: +86 13161688999
E-mai: richard.zheng@sdpenta.com
WhatsApp: +18365762100
E-mai: ricky.yin@sdpenta.com
Message
◉ Product Description
◉ Factory Showcase
◉ Customer Visits
◉ Delivery
◉ Related Products

Product Description


item name3 axle 16m lowbed semi trailer
weight
Total gross weight approx.67-87T
Dead weight approx.8T
Payload approx.60-80T
Dimensions
Overall size(mm)15800*3000*1520
Size of platform(mm)11800*3000*1280
Size of gooseneck(mm)4000*3000*1520
Wheelbase(mm)9080+1310+1310
Chassis
Main beanMaterail: Q345B Carbon Steel;
Type: gooseneck;
The height of the beam is 500mm;
The upper plate 20mm, down plate is 22mm, middle plate is 14mm
Cross member12#C type or AB type
Side rail250# "工" type
king pin3.5"
Platform
PlatformQ235, checkered plate, 4mm,
Hole / lashing12pcs each side,24pcs in total
Hook9pcs each side,18pcs in total
Running gear
axleBrand: Xinya;
QTY: 3 Axles ;
Capacity: 20T each
suspensionType: spring suspension;
Size: 90*13mm;
QTY: 10+10+10
tyresBrand: Linglong;
Double mounted;
12R22.5, 12PCS
Rims22.5*9.0,  12pcs
Landing legs28T total lifting capacity and 50T static capacity,two speeds, two-side operation
Brake systemBrand: Xinya
Type: Dual line braking system
Brake air chamber: 6 in total, T30/30*4 + T30*2
Air tank: 40L*1 unit
ABS: none
Electric system24V LED light;
waterproof wire;
7 ways (7 wire harness);
Tail lamp with turn signal & brake light  & side lamp & reflector etc.
Accessories

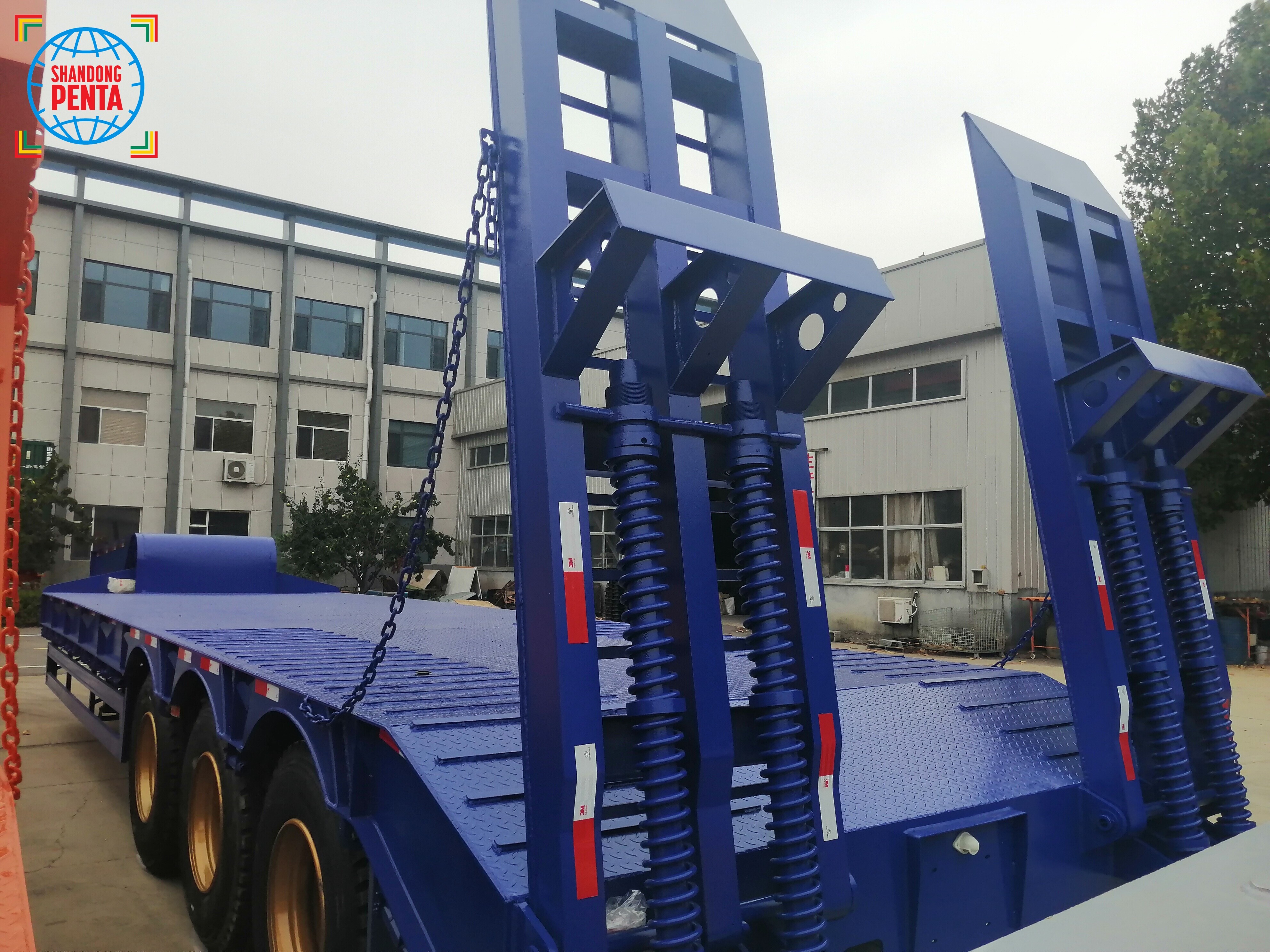

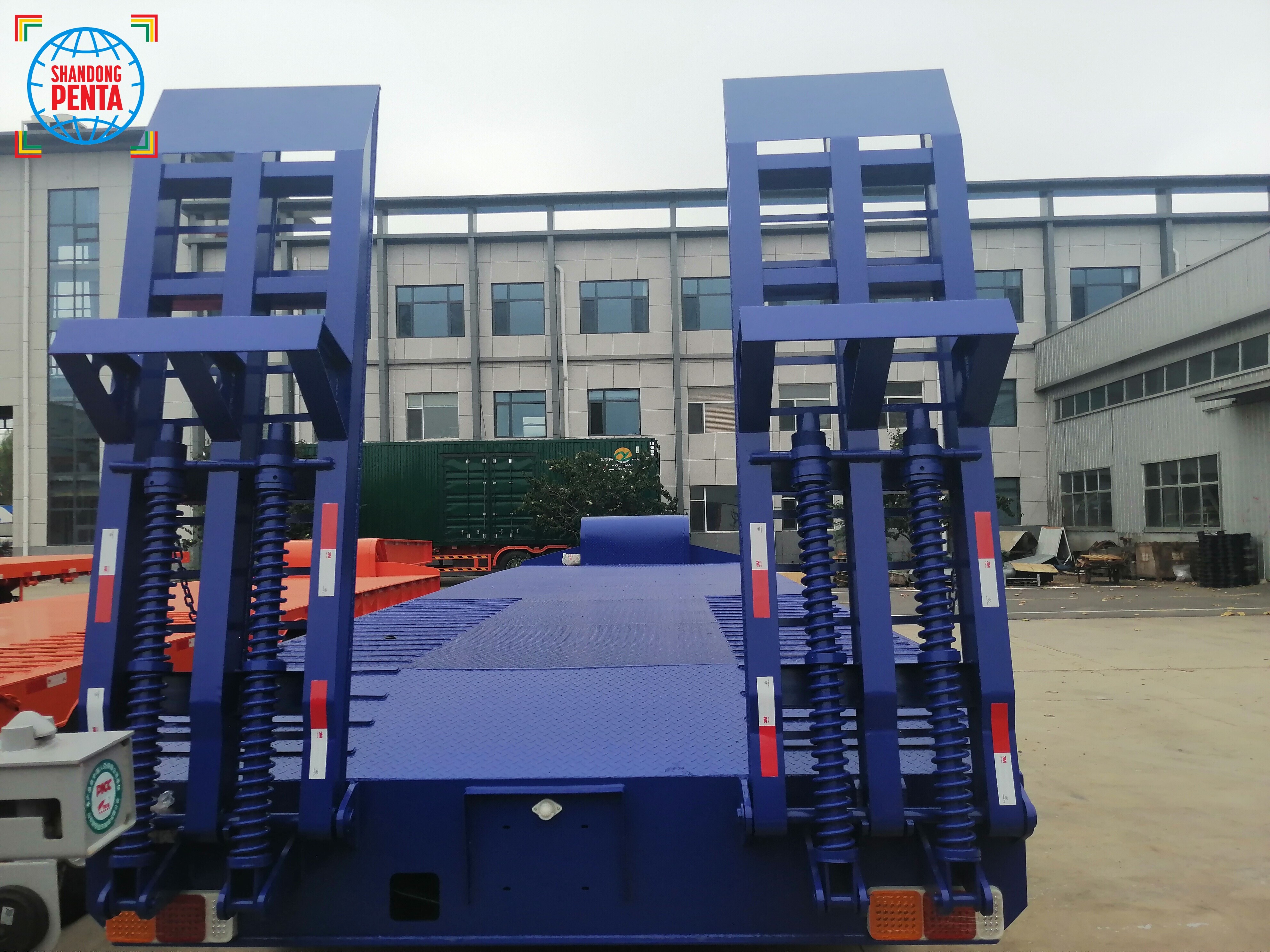

Rear Loading Ramps2 units.
Size: (W*L) 800mm*2500mm;
Spring loaded & manually operated with safety chain
Tool Box1 pc
Spare Wheel Bracket1 pcs
Paintwork and finishing
ChassisSand blasted, base coated, 2 coats of final paints,RAL-color
BodySand blasted, base coated, 2 coats of final paints,RAL-color
Accessoriespartially galvanised
